제품소개 > 양수기 > RATO 양수기.. |
 |
|
 |
| |

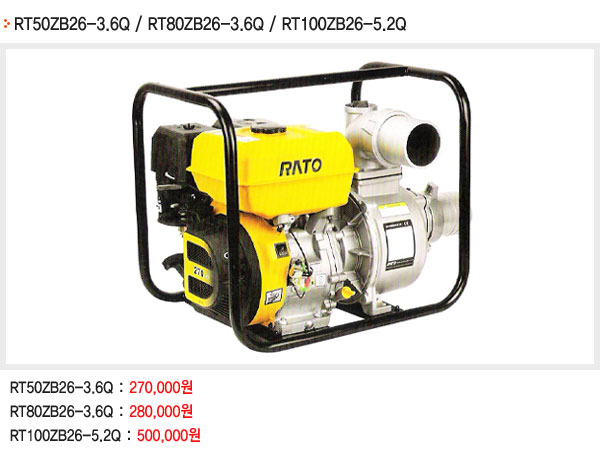

RT50ZB26-3.6Q |
RT80ZB26-3.6Q |
RT100ZB26-5.2Q |
| Engine |
R200 |
R200 |
R270 |
| Engine type |
Air-cooled, 4-Stroke, OHV, Single cylinder |
| Starting system |
Recoil starter |
| Bore x Stroke |
68 x 54 mm |
68 x 54 mm |
77 x 58 mm |
| Displacement |
196ml |
196ml |
270ml |
| Compression ratio |
8.5 : 1 |
8.5 : 1 |
8.2 : 1 |
| Net power |
4.0kW / 3600rpm |
4.0kW / 3600rpm |
5.8kW / 3600rpm |
| Lowest fuel consumption |
395(g/kW.h) |
395(g/kW.h) |
374(g/kW.h) |
| Net torque |
11N.m / 2500rpm |
11N.m / 2500rpm |
16.8N.m / 2500rpm |
| Suction port diameter |
50mm(2") |
80mm(3") |
100mm(4") |
| Discharge port diameter |
50mm(2") |
80mm(3") |
100mm(4") |
| Suction head lift |
8m |
8m |
8m |
| Total head lift |
26m |
26m |
30m |
| Discharge capacity |
36㎥/h |
60㎥/h |
96㎥/h |
| Dimensions (L x W x H) |
477 x 395 x 411 mm |
500 x 395 x 443 mm |
610 x 430 x 537 mm |
| Net weight |
26.5 kg |
27 kg |
45 kg |
|
| |
| |
| |
|
