HOME > Á¦Ç°¼Ò°³ > ¹ßÀü±â > RATO ¹ßÀü±â ..

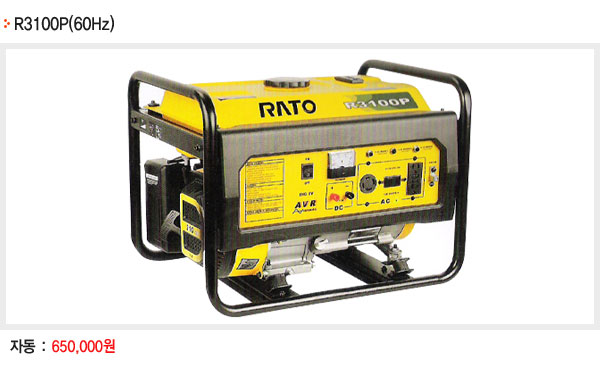

  R3100P(60Hz)
Engine type Air-cooled, 4-stroke, OHV, Single cylinder
Starting system Recoil starter
Displacement 212ml
Bore x Stroke 70 x 55 mm
Compression ratio 8.5 : 1
Rated frequency 60Hz
Rated voltage 120V/240V
Rated power 2.8kW
Max. power 3.1kW
DC output 12V, 8.3A
Fuel tank capacity 12L
Full load continuum running time 7h
1/2 load continuum running time 10h
Noise (7m) 70dB
Dimensions (L x W x H) 593 x 465 x 457 mm
Net weight 49 kg

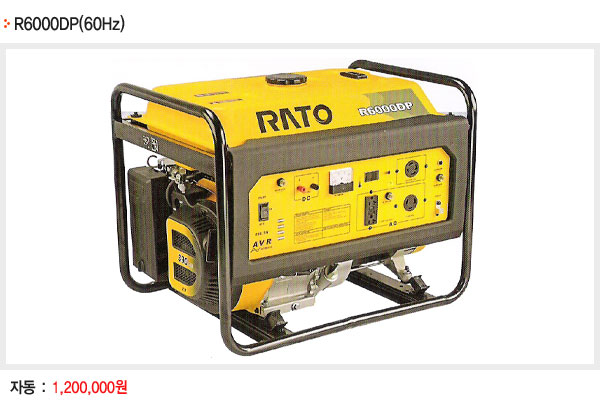

  R6000DP(60Hz)
Engine type Air-cooled, 4-stroke, OHV, Single cylinder
Starting system Recoil / electric starter
Displacement 389ml
Bore x Stroke 88 x 64 mm
Compression ratio 8.0 : 1
Rated frequency 60Hz
Rated voltage 120V/240V
Rated power 5.5kW
Max. power 6kW
DC output 12V, 8.3A
Fuel tank capacity 25L
Full load continuum running time 7h
1/2 load continuum running time 10h
Noise (7m) 74dB
Dimensions (L x W x H) 683 x 540 x 542 mm
Net weight ¡Â 87 kg

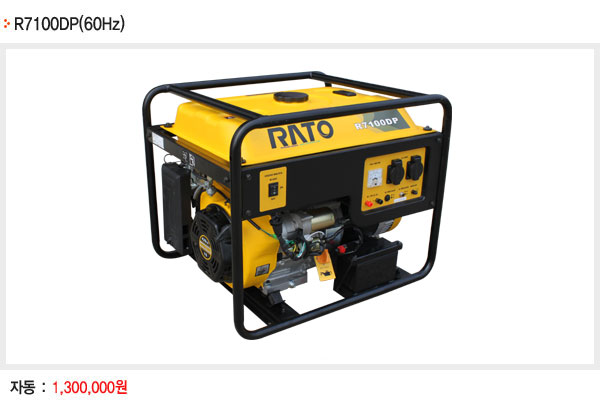

  R7100DP(60Hz)
Engine type Air-cooled, 4-stroke, OHV, Single cylinder
Starting system Recoil / electric starter
Displacement 420ml
Bore x Stroke 90 x 66 mm
Compression ratio 8.0 : 1
Rated frequency 60Hz
Rated voltage 120V/240V
Rated power 6.5kW
Max. power 7.1kW
DC output 12V, 8.3A
Fuel tank capacity 25L
Full load continuum running time 6.5h
1/2 load continuum running time 9h
Noise (7m) 78dB
Dimensions (L x W x H) 683 x 540 x 542 mm
Net weight 89 kg
