HOME > 제품소개 > 발전기 > 용접발전기..

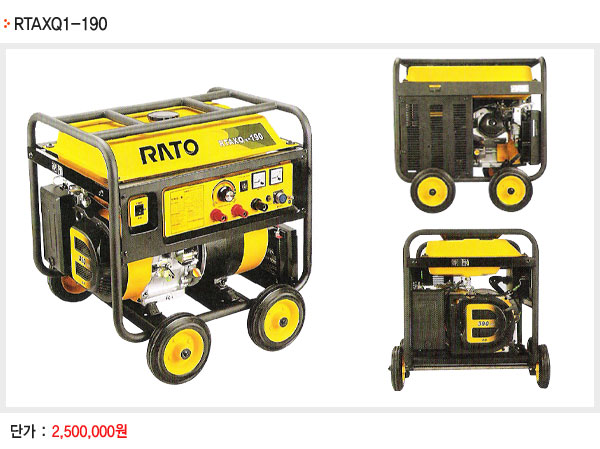

Specifications RTAXQ1-190
Engine type Air-cooled, 4-stroke, OHV, Single cylinder
Starting system Recoil / electric starter
Displacement 389ml
Bore x Stroke 88 x 64 mm
Compression ratio 8 : 1
No-load voltage 80-90V
Rated welding voltage 27V
Max welding current 190A
Duty cycle 100%
Rated duty cycle 60%
Auxiliary power DC 220V / 3kW
Current accommodated 50-190A
Welding rod 2-5 mm
Noise (7m) 75dB
Dimension (L x W x H) 686 x 550 x 570 mm
Weight 100 kg




..SHCD-PW10


  ※ Ratings : 230KW~2250KW, Voltages : 120V~6600V, Frequency : 60/50Hz, Revolution : 1800/1500Rpm,
Power Factor : 0.8

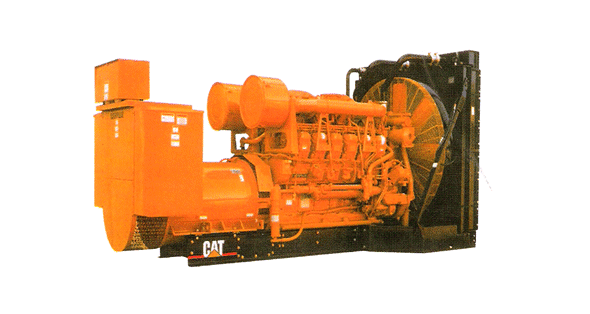

GENERATOR SET 캐터필라 엔진(CATERPILLAR ENGINE) GEN SET PHYSICALL DATA
MODEL STAND
BY
(KW)
60Hz 		PRIME
(KW)
60Hz 		MODEL STAND
BY
(PS)
60Hz 		PRIME
(PS)
60Hz 		FUEL CON-
SUMPTION
(L/H)
(PRIME) 		BORE
&
STROKE
(mm) 		NO.OF
CYLINDER		 DIMENSION
LxWxH(mm) 		WEIGHT

PAD SIZE
WxL(mm)

DJG-230CA 230 210 3306TA 345 314 67 137x152 1-6 3800x1100x1950 3100 4100x1500
DJG-
250CA 		250 225 3306ATAAC 377 343 72.3 137x152 1-6 3800x1100x1850 3200 4100x1500
DJG-
300CA 		300 275 3456EATAAC 471 431 75 140x171 1-6 4200x1175x2170 4800 4800x1800
DJG-
350CA
 350 320 3456EATAAC 536 493 90 140x171 1-6 4200x1175x2170 4800 4800x1800
DJG-
400CA 		400 365 3456EATAAC 610 546 100 140x171 1-6 4200x1175x2170 4800 4800x1800
DJG-
450CA		 450 410 3406EATAAC 685 612 111 140x171 1-6 4200x1175x2170 4800 4800x1800
DJG-
500CA
 500 455 3406EATAAC 764 691 124 140x171 1-6 4200x1175x2170 4800 4800x1800
DJG-
550CA 		550 500 3412TTA 823 752 154 137x152 V-12 4500x1750x2000 6200 4900x2200
DJG-
600CA 		600 545 3412TTA 896 817 168 137x152 V-12 4500x1750x2000 6300 4900x2200
DJG-
650CA 		650 591 3412TTA 968 890 175 137x152 V-12 4650x1750x2000 6400 5000x2200
DJG-700CA 700 635 3412TTA 1039 947 188 137x152 V-12 4500x1750x2000 7000 4900x2200
DJG-
750CA 		750 680 3412TTA 1109 1011 206 137x152 V-12 4500x1750x2000 7100 4900x2200
DJG-
800CA 		800 725 3412STA 1180 1071 222 137x152 V-12 4500x1750x2000 7200 4900x2200
DJG-
900CA 		900 820 3508TA 1337 1220 251 170x190 V-8 4650x2050x2250 9500 5000x2500
DJG-
1000CA 		1000 910 3508BTA 1482 1380 277 170x190 V-8 4900x2350x2550 11000 5300x2500
DJG-
1100CA 		1100 1000 3512TA 1592 1443 282 170x190 V-12 5150x2050x2550 12000 5400x2900
DJG-
1250CA 		1250 1135 3512TA 1801 1661 355 170x190 V-12 4200x2350x2550 13000 5600x2900
DJG-
1400CA 		1400 1275 3512BTA 2018 1840 383 170x190 V-12 5200x2350x2550 13000 5600x2900
DJG-
1500CA 		1500 1360 3512BTA 2168 1967 411 170x190 V-12 5200x2350x2550 13000 5600x2900
DJG-
1750CA 		1750 1600 3516TA 2518 2304 470 170x190 V-16 5200x2350x2550 15000 6100x2900
DJG-
2000CA 		2000 1825 3516BTA 2876 2628 519 170x190 V-16 5800x250x3100 15000 6400x3000
DJG-
2250CA 		2250 2000 3516BTA 3210 2876 589 170x190 V-16 6600x2650x3010 17000 7200x3100




..
엔진TIG용접기


모 델 DAT-270ES
용접용발전기 전류범위 수 30-250A
TIG 15-250A
적용용접봉 수 2.0-5.0mm
TIG 1.0-2.4mm
사용율(%) 수 50
TIG 40
보조전원 AC3KVA
가솔린엔진 모델 구보다 D722-KB
정격출력
kw/m￣¹ 		10.9/2800
외형 장x폭x고
(mm)		 1310x680x970
중량(mm) 340




  ..
소형 가솔린 엔진용접기

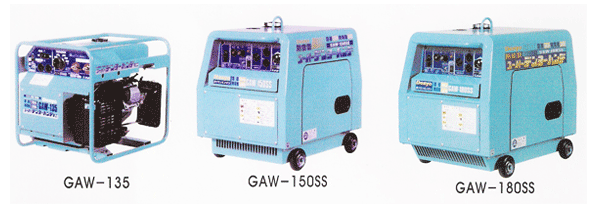

모 델 GAW-135 GAW-150SS GAW-180SS
용접용발전기 전류범위 40-135A 30-150A 30-180A
적용용접봉 2.0-3.2mm 2.0-3.2mm 2.0-4.0mm
사용율(%) 40 50 50
보조전원 AC1.5KVA AC2.5KVA AC3.0KVA
가솔린엔진 모델 혼다GX200 혼다GA280 얀마GA340
정격출력
kw/m￣¹ 		4.1/3600 5.1/3600 6.5/3600
외형 장x폭x고
(mm)		 540x345x465 702x495x655 745x515x670
중량(mm) 49 101 110




..
소형 디젤 엔진용접기

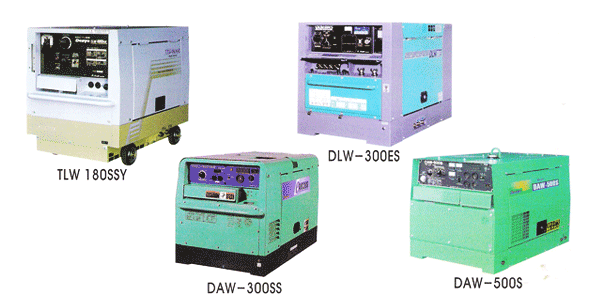

모 델 TLW-180SSY TLW-230SSK DAW-300SS DLW-300ES DAW-500S
용접용발전기 전류범위 50-180A 50-230A 30-300A 30-300A 40-500A
적용용접봉 2.6-4.0mm 2.6-5.0mm 2.0-6.0mm 2.0-6.0mm 2.6-8mm
사용율(%) 50 50 50 50 60
보조전원 단상 AC4.5 AC5.5 AC3 AC8 AC3
삼상 - - - 9.9KVA
디젤엔진 모델 얀마L100A 구보다Z482 구보다D722 얀마3TNE68 구보다D1703
정격출력
kw/m￣¹ 		9.5/3600 12.5/3600 11.7/3600 15.1/3600 25.4/3600
외형 장x폭x고
(mm)		 990x600x765 1220x610x720 1270x680x740 1410x680x760 1260x800x870
중량(mm) 260 295 300 384 485

  ※ 츄레라 별도 제작 가능.
