| GASOLINE ENGINE |

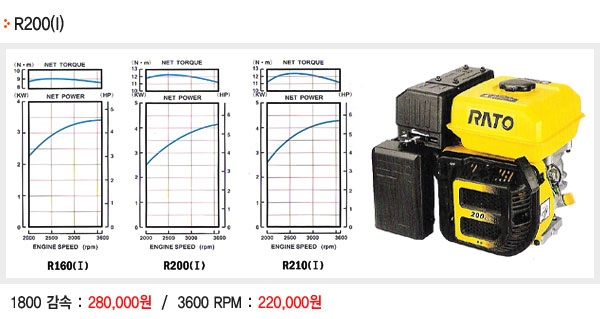

R200(I) |
| Engine type |
Single cylinder , 4-stroke (OHV) |
| Bore x Stroke |
68 x 54 mm |
| Displacement |
196ml |
| Compression ratio |
8.5 : 1 |
| Net power |
4.0kW / 3600r/min |
| Net torque |
11N.m / 2500r/min |
| PTO shaft rotation |
Counterclockwise (horizontal shaft output) |
| Ignition system |
Transistorized magneto ignition |
| Starting system |
Recoil / electric starter |
| Carburetor |
Flat suction valve carburetor |
| Lubrication system |
Forced splash |
| Govermor system |
Centrifugal mechanical |
| Air cleaner |
Dual elements (foam) |
| Oil capacity |
0.6L |
| Fuel tank capacity |
3.6L |
| Dimensions (L x W x H) |
390 x 320 x 345 mm |
| Net weight |
16 kg |
| Fuel consumption |
≤ 395g / kW h |
|
| |
 |
| GASOLINE ENGINE |

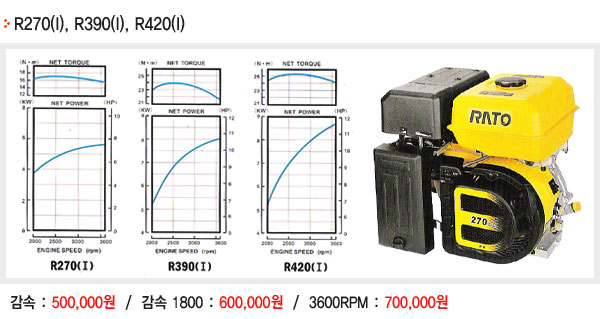

R270(I) |
R390(I) |
R420(I) |
| Engine type |
Single cylinder , 4-stroke (OHV) |
| Bore x Stroke |
77 x 58 mm |
88 x 64 mm |
90 x 66 mm |
| Displacement |
270 ml |
389 ml |
420 ml |
| Compression ratio |
8.2 : 1 |
8.0 : 1 |
8.0 : 1 |
| Net power |
5.6kW / 3600r/min |
7.6kW / 3600r/min |
8.5kW / 3600r/min |
| Net torque |
17N.m / 2500r/min |
23N.m / 2500r/min |
25N.m / 2500r/min |
| PTO shaft rotation |
Counterclockwise (horizontal shaft output) |
| Ignition system |
Transistorized magneto ignition |
| Starting system |
Recoil / electric starter |
| Carburetor |
Flat suction valve carburetor |
| Lubrication system |
Forced splash |
| Govermor system |
Centrifugal mechanical |
| Air cleaner |
Dual elements (foam) |
| Oil capacity |
1.1L |
1.1L |
1.1L |
| Fuel tank capacity |
6.5L |
6.5L |
6.5L |
| Dimensions (L x W x H) |
415 x 392 x 425 mm |
465 x 413 x 440 mm |
465 x 413 x 440 mm |
| Net weight |
26 kg |
31 kg |
32.5 kg |
| Fuel consumption |
≤ 374g / kW h |
≤ 374g / kW h |
≤ 374g / kW h |
|
| |
 |
| Specifications |
R670 |
| Engine type |
V-Twin cylinder, 4-stroke (OHV) |
| Bore x Stroke |
78 x 70 mm |
| Displacement |
670ml |
| Compression ratio |
8.5 : 1 |
| Net power |
15.8kW / 3600rpm |
| Net torque |
47N.m / 2500rpm |
| PTO shaft rotation |
Counterclockwise (horizontal shaft output) |
| Ignition system |
Transistorized magneto ignition |
| Starting system |
Electric starter |
| Carburetor |
Flat suction valve carburetor |
| Lubrication system |
Pressure / forced splash |
| Govermor system |
Centrifugal mechanical |
| Air cleaner |
Dual elements (paper or foam) |
| Oil capacity |
2.0L |
| Fuel tank capacity |
- |
| Dimensions (L x W x H) |
457 x 351 x 460 mm |
| Net weight |
45 kg |
| Fuel consumption |
≤ 374g / kW h |
|
| |
| |
| |
|
